Dinosaur Micro P-711 Replacement Dometic Refrigerator Control Board

Original price was: $179.98.Current price is: $99.99.

SKU: ZHLLC 51434 Categories: Circuit Boards, RV Appliances

Fast, friendly, always here to help.
Control the delivery date and try to deliver it in the fastest time
Free 1 year warranty period
Free Shipping Worldwide

/

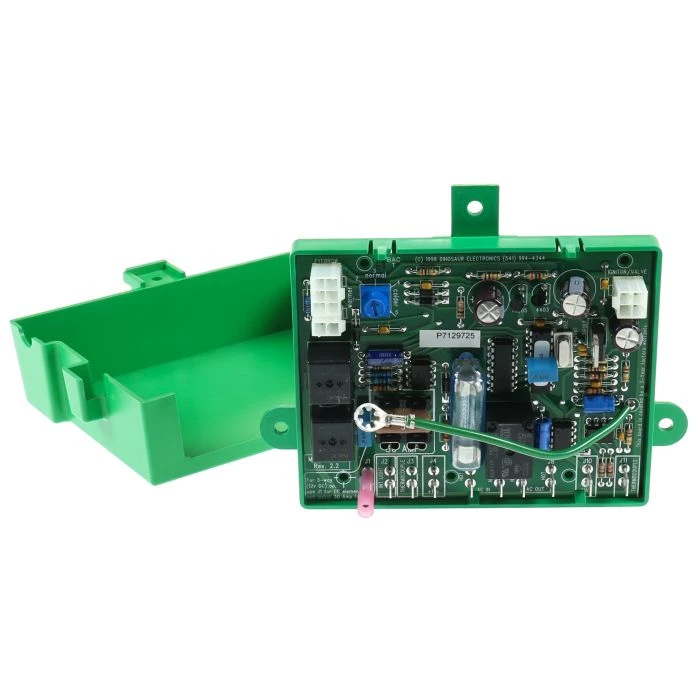

Dinosaur Micro P-711 Replacement Dometic Refrigerator Control Board

Works in 2-way (AC, gas) and 3-way (AC, DC, gas) units with all types of eyebrows. It features an improved thermocouple circuit to eliminate the recurring check light problem. A food saver keeps the refrigerator operating if the eyebrow board or communication link fails. A temperature control knob allows you to choose the full temperature range on fixed temperature refrigerators. It also allows for”aging” compensation in the units that have a 1-2-3-4-5 temperature adjustment panel. Fuse protected on the 12V DC supply, DC element and 120V AC circuit. Simple installation, works in units with or without the wiring upgrade kit and includes detailed instructions.

**NOTE: The Micro P-711 Is Not PAL Tester Compatible.**

Item #	51434
Brand	Dinosaur Electronics
Model	P-711
Fits	2-Way, 3 Way, AMES, AES, Adjustable-Temp & Fixed Temp Dometic Refrigerators With The Following Models : NDR1062, NDR1272, NDR1282, NDR1292, NDR1492, RM2551, RM2554, RM2607, RM2611, RM2612, RM2652, RM2807, RM2811, RM2812, RM2852, RM3607, RM3662, RM3663, RM3807, RM3862, RM3863, RM4872, RM4873, RM7030, RM7130, RM7732, RM7832, S1521, S153, S1621, S1631, S1821, S1831.
Color	Green
Features	Built In Temperature Adjustment Automatic System Detection Food Saver Features Improved Thermocouple Circuit Surge Protection No Wiring Kit Necessary Connections Are Clearly Marked
Included	(1) Control Board (1) Plastic Protective Box (1) 3-Way Only Fuse
Dimensions	Overall Box: 5-7/8" x 4-5/8" x 1-1/2"
Warranty	3 Year
Net Weight	.55
Gross Weight	.70
Special Order Item	No
UPC	799530147391
LTL Freight	No
