Dinosaur Replacement Power Supply Board For Norcold 6212 Series

Original price was: $277.56.Current price is: $99.99.

SKU: ZHLLC 69785 Categories: Circuit Boards, RV Appliances

Fast, friendly, always here to help.
Control the delivery date and try to deliver it in the fastest time
Free 1 year warranty period
Free Shipping Worldwide

/

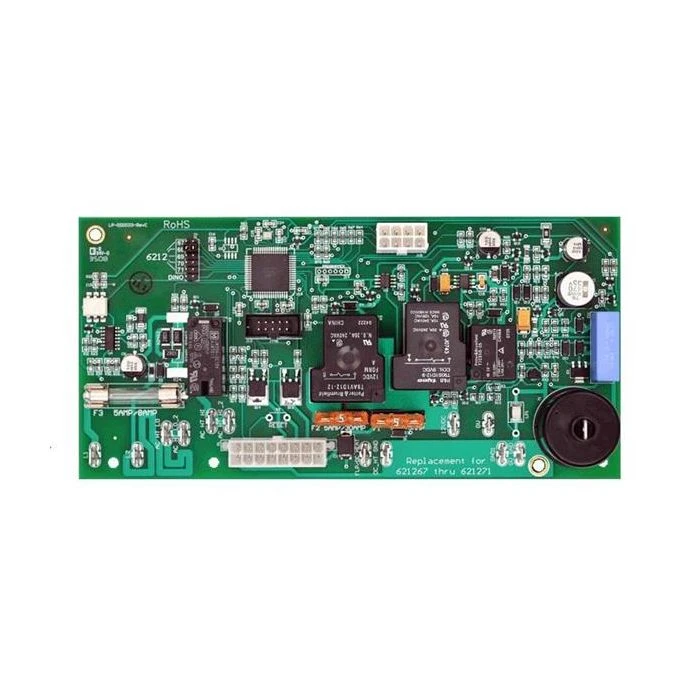

Dinosaur Replacement Power Supply Board for Norcold 6212 Series

In addition to being fully compatible, the No Cooling fault code can be reset from the front, operator panel. All of the connections to the board for the: AC, AC Heater, P1 Cable, DC Heater or Flapper Heater, +12, GND, Gas Valve, Gas Valve GND, and the Spark Wire are all labeled the same and are in the same location as the original factory boards. You must properly position the selection jumper to correspond with the board that is being replaced. Replacing Norcold # Jumper Position 621267 & 621267.001 67, 621268 & 621268.001 68, 621269 & 621269.001 69, 621270 & 621270.001 70, 621271 & 621271.001 71, 619360 69, 619361 67, 632168.001 67, 628672 70, 619353 67.

Item #	69785
Brand	Dinosaur Electronics
Model	6212XX
Fits	Can replace Norcold’s part numbers: 621267, 621267.001, 621268, 621268.001, 621269, 621269.001, 621270, 621270.001, 621271, 621271.001, 619353, 619360, 619361, 632168.001, 628672
Dimensions	7-13/16" L x 3-13/16" W
Special Order Item	No
UPC	816689023090
LTL Freight	No
