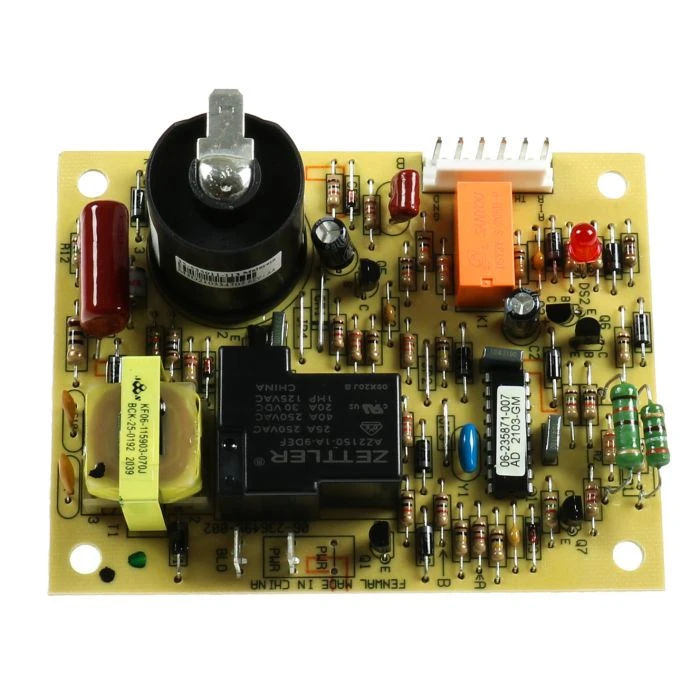

Dometic Atwood Hydro-Flame Furnace DSI Universal Ignition DC Control Board Kit

Original price was: $163.19.Current price is: $98.99.

SKU: ZHLLC 50791 Categories: Circuit Boards, RV Appliances

Fast, friendly, always here to help.
Control the delivery date and try to deliver it in the fastest time
Free 1 year warranty period
Free Shipping Worldwide

/
Dometic Atwood Hydro-Flame Furnace DSI Universal Ignition DC Control Board Kit

Without Green Pin Adapter 35325/ Order Separately If Needed

Replacement For Dometic Atwood Furnaces With Direct Spark Ignition (DSI)

The 31501 Dometic DC Furnace Circuit Universal Ignition Control Board with Direct Spark Ignition, 12V with Fan Control is the OEM replacement for Atwood Furnaces Series 79/80XX, 85XX, & 89XX.

This DC Furnace Circuit Universal Ignition Control Board with Direct Spark Ignition is the OEM replacement part specifically designed for use with Atwood Hydro Flame Furnaces: 7912-II, 7916-II, 7920-II, 8012-II, FA 79D, HF 80D, DC82 25-32, DC82 35-41, FA 76D, FA 78 25-32, FA 72D, 85-I Series,85-II Series,8500-III Series,8500-IV Series , 8900-I DC Series, 8900-II DC Series, 8900-III DC Series, AFSD12, AFSD16, AFSD20, AFMD20, AFMD25, AFMD30, AFMD35, DFMD20111,DFMD30111,DFMD25111, DFMD35111 DFSD12111, DFSD16111 and DFSD20111. The ignition control board performs all the functions necessary to turn the furnace on and keep it running. The board sends signals to open the gas valve and emits a high output voltage that creates an ignition spark to light the burner.

Item #	50791
Brand	Atwood
Model	31501
Compatible With	This DSI board is a direct replacement for all 12V DC older systems. Use the Edge Pin Adapter if needed (SOLD SEPARATELY). No wiring changes are required. Direct Replacement with current systems. Excludes 2-stage and AC Models.
Features	Universal Ignition DC 12 Volt; With Fan Control Replacement For Atwood Furnaces With Direct Spark Ignition (DSI), Excludes 2-Stage and AC Models. Developed To Provide Steady Performance And Reliability Expertly Made From Premium Materials Quality Product At An Affordable Price Easy Installation
Included	(1) Circuit Board (1) Installation Sheet Edge Pin Adapter is NOT included and is SOLD separately. It is needed when connecting this circuit board to furnaces with old style harnesses.
Dimensions	Board: 4-1/4" x 3-1/4"
Made in	China
Net Weight	.65
Gross Weight	.75
Special Order Item	No
Return Policy	30 Days (After Delivery)
UPC	692931315010
LTL Freight	No
