Sale!

Dometic Refrigerator Door Light Switch Assembly Kit

Original price was: $63.99.Current price is: $44.79.

SKU: ZHLLC 96648 Categories: Refrigeration, Refrigerator Parts, RV Appliances

Fast, friendly, always here to help.
Control the delivery date and try to deliver it in the fastest time
Free 1 year warranty period
Free Shipping Worldwide

/

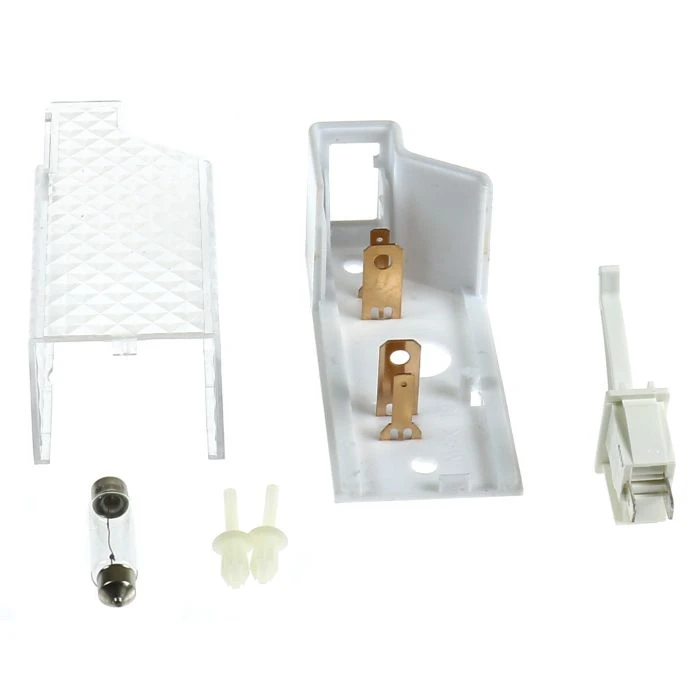

Dometic Refrigerator Door Light Switch Assembly Kit

S,DOOR LIGHT/SWITCH,ASM-6/8

Item #	96648
Brand	Dometic
Model	29326650177
Replaces	2932665017
Fits	Dometic Refrigerators: 6/8 Cu Ft
Color	White
Features	Long Plastic Switch White Plastic Light Housing Clear Plastic Lamp Cover 12V/10W Bulb Copper Contact Terminals White Plastic Push Rivets
Included	(1) Door Light Switch Kit Including: (1) Long Light Switch (2932665017) (1) Lamp Holder Housing (2932523018) (1) Lamp Cover (2932106012) (2) Contact Terminal Pin (2932108018) (1) Bulb (2007290006) (2) Push Rivet (0165521030)
Dimensions	Switch: Base: 1-1/8" Tall x 9/16" W x 3/4" Deep, Arm Extends from Base: 1-1/2 Lamp Holder Housing: 3-15/16" L x 1-3/4" W x 1-9/16" T Lamp Cover: 3-7/8" L x 1-3/4" W x 1-1/2" T Contact Terminal Pin:10MM x 25MM Bulb: 1 11/16" x 3/8" approx Push Rivet: 1" L x 3/8" Diameter (at widest center)
Net Weight	.15
Special Order Item	No
UPC	713814056568
LTL Freight	No
