Tri Mark 3 Point Baggage Door Lock

Original price was: $56.07.Current price is: $39.25.

SKU: ZHLLC 65423 Categories: Cam Locks, Hardware, Hatch & Compartments

Fast, friendly, always here to help.
Control the delivery date and try to deliver it in the fastest time
Free 1 year warranty period
Free Shipping Worldwide

/

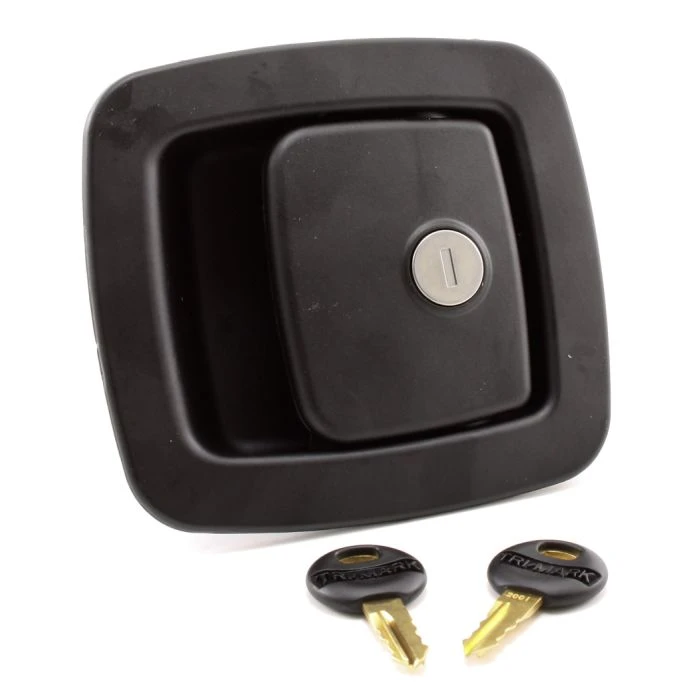

Tri Mark 3 Point Baggage Door Lock

Whereas in single-point locking, the door locks only at the point where the key is turned, half-way up the edge of the door, three-point locking enables the top and bottom of the door to be simultaneously secured. This is accomplished by attaching two long steel rods to the lock on the inside of the door, which extend vertically upwards and downwards: This effectively immobilizes the top and bottom of the door, and greatly increases the security of the door-locking compared to a door with only single-point locking.

Mounts with four (4) #8-32 thread forming fasteners (not supplied).

Item #	65423
Brand	Tri-Mark
Model	21880-05
Color	Black
Features	Offers lower operating efforts and a more forgiving assembly. Ample finger clearance. Paddle can be locked before the door is shut (slam action). Updated styling. Improved plunger design. Increased mechanical advantage to allow for lower operating efforts. Finish: Paddle and housing: low gloss black powder coat. Steel components: zinc coat with clear chromate. Material: Housing and paddle: die cast zinc. Pivot plate, axles, pivot arm: steel. Plunger bolt: plastic or die cast zinc.
Included	(2) Keys Gasket already applied under recess in housing flange
Dimensions	Face Plate: 5-1/4" x 4-3/4"
Net Weight	1.45
Gross Weight	1.50
Special Order Item	No
LTL Freight	No
